Product Details

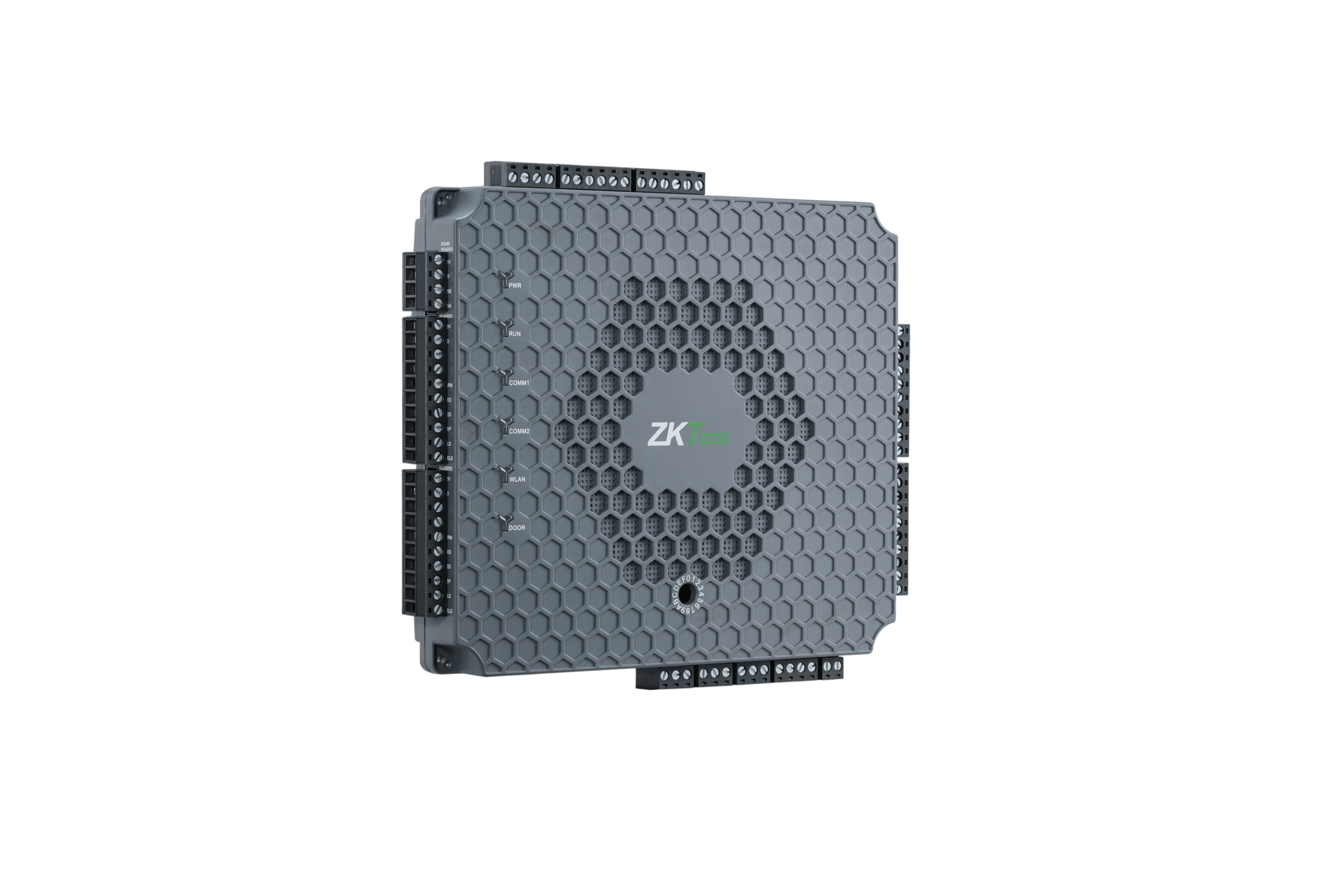

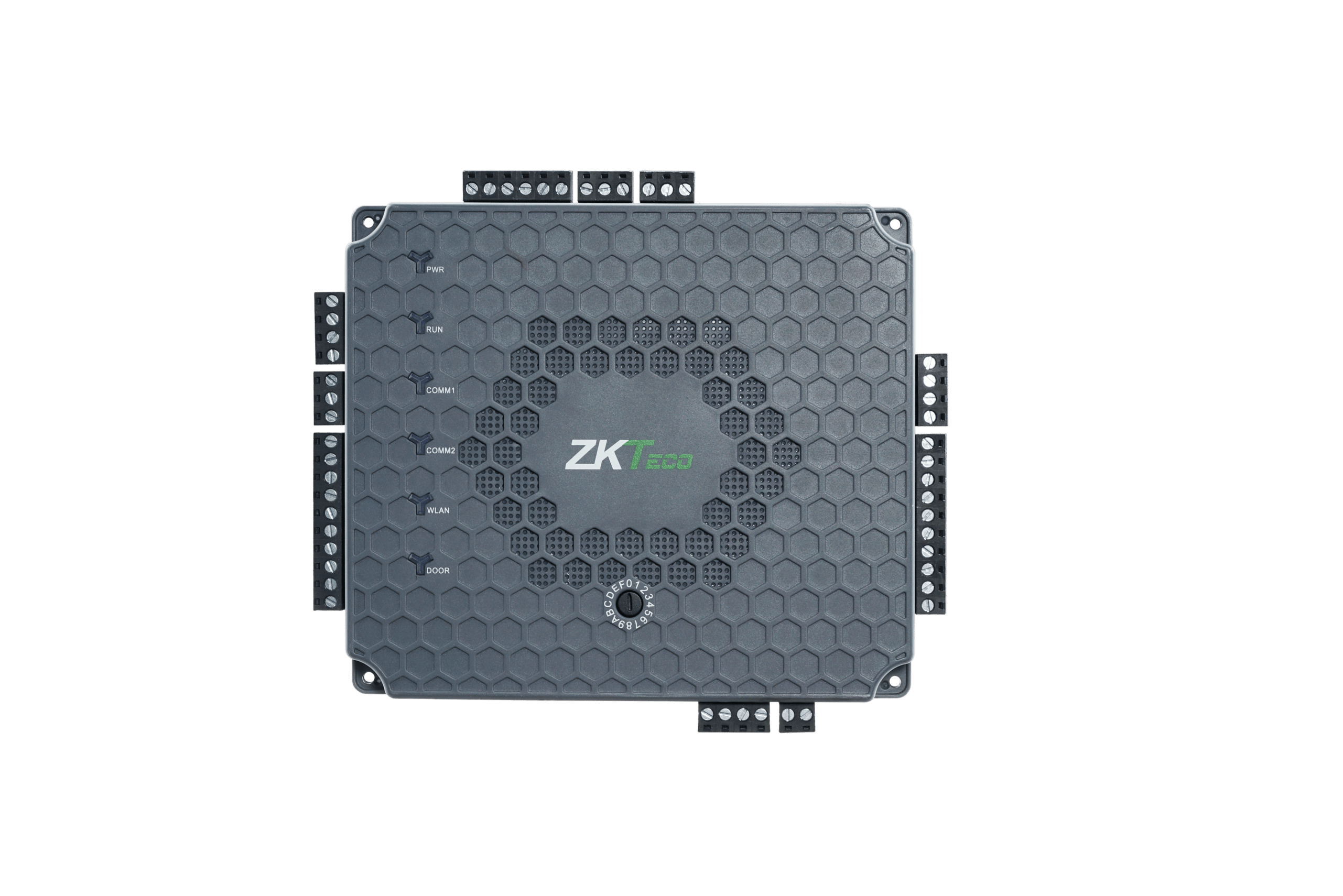

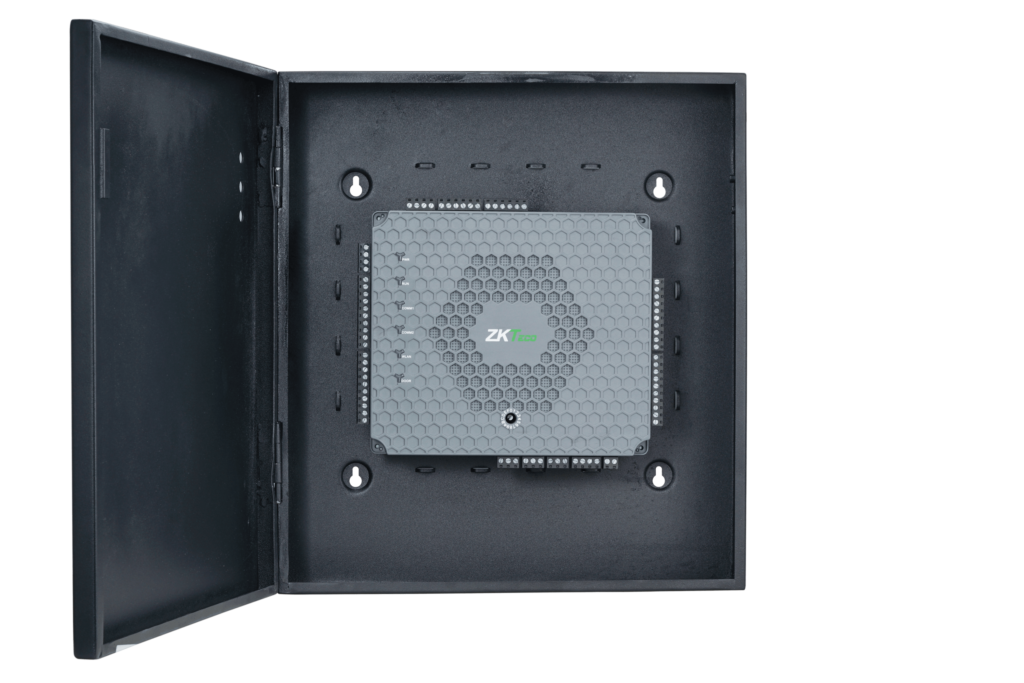

Atlas Bio Series
Customizable 1, 2 and 4 Door Biometric Access Control Panels with Built-in Web
Application Eliminate the Need for Management Software
- User Capacity: Supports up to 5,000 users with fingerprint templates or cards, allowing up to 10 fingerprints per user for enhanced flexibility.
- Fingerprint Storage: Accommodates 5,000 fingerprint templates, ensuring reliable authentication for all users.
- Event Database: Logs up to 10,000 transactions with unlimited archive downloads for comprehensive activity tracking.
- Networking: Equipped with TCP/IP and Wi-Fi for effortless network integration.
- RS485 Communication: Supports Wiegand, OSDP, and FR1500A connectivity with a baud rate of 9600 bps for reliable data transfer.
- Output Relays: Features 3 Form-C SPDT relays rated at 5A@36V DC or 8A@30V AC for robust output control.
- LED Indicators: Intuitive LED indicators for power and communication status.
- Power Supply: Operates on 12V DC 3A with Power over Ethernet (PoE) compatibility and consumes only 9W@12V DC 750mA.
- Operating Conditions: Functions efficiently within a temperature range of 32–113 °F (0–45 °C) and humidity levels of 20% to 80%.
