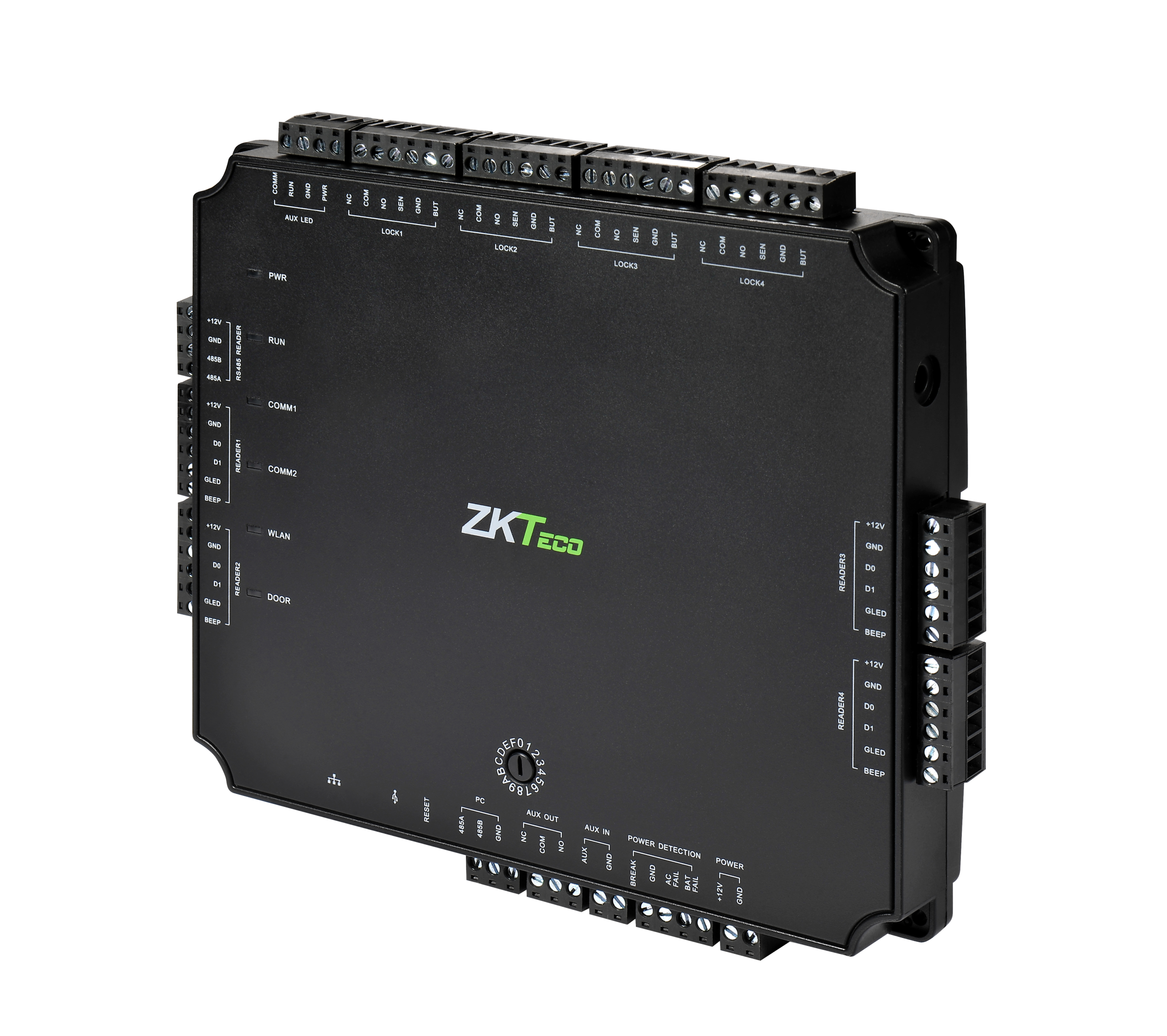

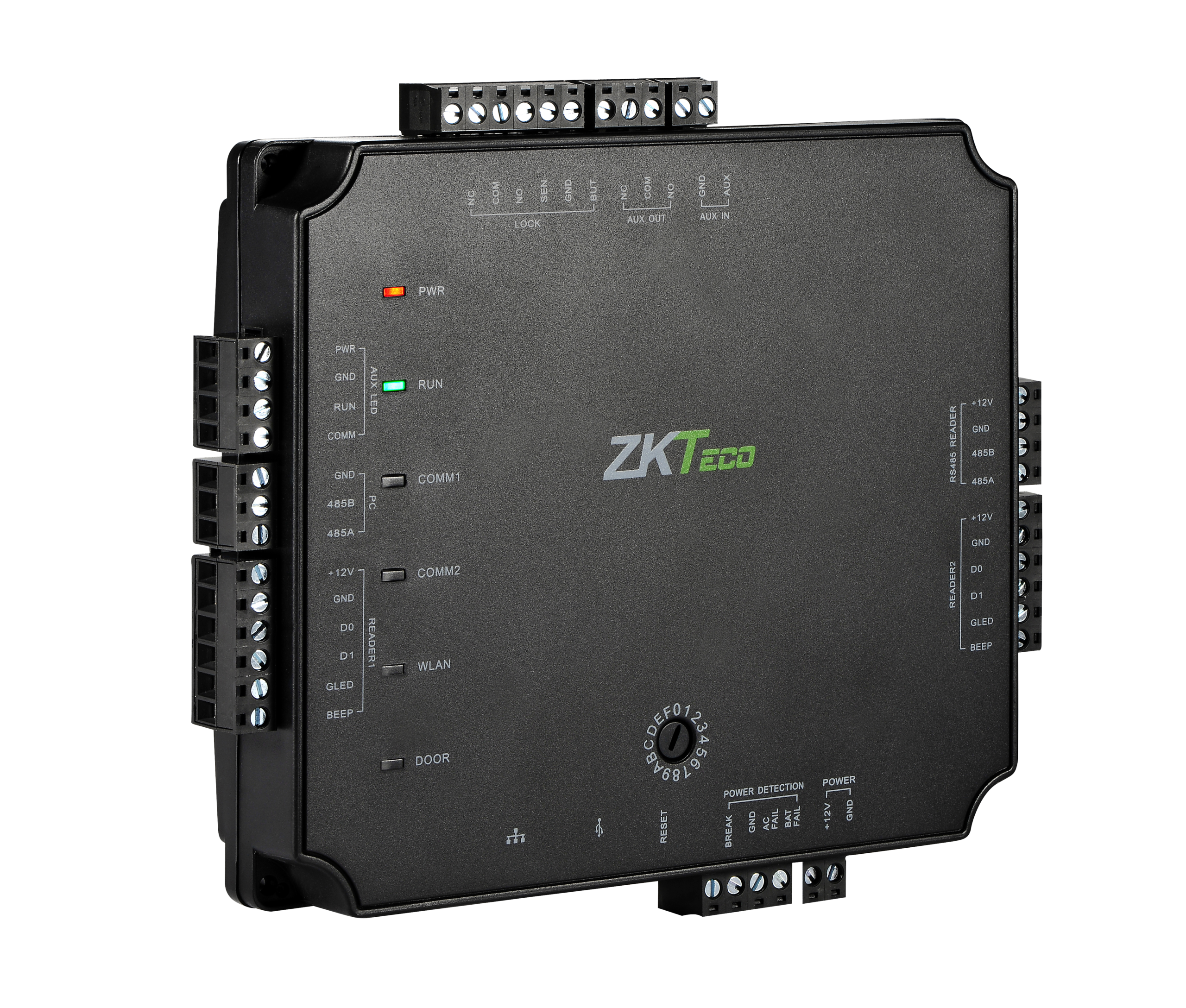

Customizable 1, 2 and 4 Door Access Control Panels with Built-in Web Application Eliminate the Need for Management Software

Advanced Access Control Features
No software required. Built-in Web Application
provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs

Door Control and More
User-programmable auxiliary relays can be used
to control lights, alarms, annunciators, intrusion
detection panels, additional locking devices,
or any other external electrical device which
can be controlled by a switch.

Capacity
1 Primary panel can support up to 20 Secondary
panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Prox Series panel can store up to 5,000 users and 10,000 transactions plus unlimited archive downloads.

Choice of Readers
Atlas Series supports ZKTeco KR series & any
3rd-party readers which communicate with
Wiegand or OSDP communication protocols.

Communication
Atlas Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.

Mobile App
Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.

Power
Atlas Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).

Lowest Total Cost of Ownership
Atlas Series panels come in several models to suit different project needs and reduce the cost of unused capacity. Easy-to-use embedded Web Application gets you up and running quickly. Firmware is field upgradeable, allowing your system to stay current with the latest features and security enhancements.
